ActivityManagerService 是 Android 提供的管理 Activity 运行状态的系统进程，其实大家别被名字迷惑了，ActivityManagerService（后称AMS）其实也兼任管理其他组件运行状态。
AMS概述
AMS启动流程
根据这篇文章中提到的，init 进程是 Android 系统中的初始化进程，init 生成 Zygote 进程，Android 中大多数应用进程和系统进程都是通过 Zygote 进程生成的。
上面的流程图展示了 AMS 的代码执行流程。我们接下来详细讲讲。
AMS这种系统级别的服务，一般都是在启动的时候触发，我们可以看一下在 system_server 进程中，是如何启动 AMS 的：
// com.android.server.SystemServer.java;
public final class SystemServer {
/**
* The main entry point from zygote.
*/
public static void main(String[] args) {
new SystemServer().run();
}
private void run() {
...
// Start services.
...
startBootstrapServices();
...
}
private void startBootstrapServices() {
...
// Activity manager runs the show.
traceBeginAndSlog("StartActivityManager");
// TODO: Might need to move after migration to WM.
ActivityTaskManagerService atm = mSystemServiceManager.startService(
ActivityTaskManagerService.Lifecycle.class).getService();
// 这里真正启动了 AMS
mActivityManagerService = ActivityManagerService.Lifecycle.startService(
mSystemServiceManager, atm);
mActivityManagerService.setSystemServiceManager(mSystemServiceManager);
mActivityManagerService.setInstaller(installer);
mWindowManagerGlobalLock = atm.getGlobalLock();
...
// 为 system 进程设置 Application 实例
mActivityManagerService.setSystemProcess();
}
}
可以看到，启动 AMS 使用的是 AMS 自身的一个静态内部类的startService()方法，我们来看看：
// ActivityManagerService.java
public static final class Lifecycle extends SystemService {
private final ActivityManagerService mService;
...df
public static ActivityManagerService startService(
SystemServiceManager ssm, ActivityTaskManagerService atm) {
sAtm = atm;
return ssm.startService(ActivityManagerService.Lifecycle.class).getService();
}
@Override
public void onStart() {
mService.start();
}
...
}
这里又调用了SystemServiceManager.startService(Class)方法，我们来看一下：
// com.android.server.SystemServiceManager.java
/**
* Creates and starts a system service. The class must be a subclass of
* {@link com.android.server.SystemService}.
*
* @param serviceClass A Java class that implements the SystemService interface.
* @return The service instance, never null.
* @throws RuntimeException if the service fails to start.
*/
@SuppressWarnings("unchecked")
public <T extends SystemService> T startService(Class<T> serviceClass) {
...
// 通过反射的方式实例化该 service
Constructor<T> constructor = serviceClass.getConstructor(Context.class);
service = constructor.newInstance(mContext);
...
startService(service);
return service;
}
public void startService(@NonNull final SystemService service) {
// 注册
mServices.add(service);
...
// 调用 Lifecycle 的 onStart() 方法
service.onStart();
...
}
可以看到，最后调用到了ActivityManagerService.Lifecycle.onStart()方法，而ActivityManagerService.Lifecycle.onStart()方法又调用了mService.start()方法，进行了一些初始化的工作：
private void start() {
removeAllProcessGroups();
mProcessCpuThread.start();
mBatteryStatsService.publish();
mAppOpsService.publish(mContext);
Slog.d("AppOps", "AppOpsService published");
LocalServices.addService(ActivityManagerInternal.class, new LocalService());
mActivityTaskManager.onActivityManagerInternalAdded();
mUgmInternal.onActivityManagerInternalAdded();
mPendingIntentController.onActivityManagerInternalAdded();
// Wait for the synchronized block started in mProcessCpuThread,
// so that any other access to mProcessCpuTracker from main thread
// will be blocked during mProcessCpuTracker initialization.
try {
mProcessCpuInitLatch.await();
} catch (InterruptedException e) {
Slog.wtf(TAG, "Interrupted wait during start", e);
Thread.currentThread().interrupt();
throw new IllegalStateException("Interrupted wait during start");
}
}
初始化完成后，就会调用mActivityManagerService.setSystemProcess()方法：
public void setSystemProcess() {
...
ServiceManager.addService(Context.ACTIVITY_SERVICE, this, /* allowIsolated= */ true,
DUMP_FLAG_PRIORITY_CRITICAL | DUMP_FLAG_PRIORITY_NORMAL | DUMP_FLAG_PROTO);
ServiceManager.addService(ProcessStats.SERVICE_NAME, mProcessStats);
ServiceManager.addService("meminfo", new MemBinder(this), /* allowIsolated= */ false,
DUMP_FLAG_PRIORITY_HIGH);
ServiceManager.addService("gfxinfo", new GraphicsBinder(this));
ServiceManager.addService("dbinfo", new DbBinder(this));
if (MONITOR_CPU_USAGE) {
ServiceManager.addService("cpuinfo", new CpuBinder(this),
/* allowIsolated= */ false, DUMP_FLAG_PRIORITY_CRITICAL);
}
ServiceManager.addService("permission", new PermissionController(this));
ServiceManager.addService("processinfo", new ProcessInfoService(this));
...
}
可以看出，通过ServiceManager.addService(Context.ACTIVITY_SERVICE, this, true)方法注册了当前 AMS 的实例。AMS 是一个典型的 Binder Server，ServiceManager 还注册了与 AMS 有关的其他服务（如 CPU、PermissionController等），说明后面 AMS 会与这些服务有很多交互。
刚才我们跳过了 AMS 的实例化过程，现在我们来看一下它的实例化中，具体都做了哪些工作：
// Note: This method is invoked on the main thread but may need to attach various
// handlers to other threads. So take care to be explicit about the looper.
public ActivityManagerService(Context systemContext, ActivityTaskManagerService atm) {
LockGuard.installLock(this, LockGuard.INDEX_ACTIVITY);
mInjector = new Injector();
mContext = systemContext;
mFactoryTest = FactoryTest.getMode();
// 第一步
mSystemThread = ActivityThread.currentActivityThread();
mUiContext = mSystemThread.getSystemUiContext();
Slog.i(TAG, "Memory class: " + ActivityManager.staticGetMemoryClass());
mHandlerThread = new ServiceThread(TAG,
THREAD_PRIORITY_FOREGROUND, false /*allowIo*/);
mHandlerThread.start();
mHandler = new MainHandler(mHandlerThread.getLooper());
mUiHandler = mInjector.getUiHandler(this);
mProcStartHandlerThread = new ServiceThread(TAG + ":procStart",
THREAD_PRIORITY_FOREGROUND, false /* allowIo */);
mProcStartHandlerThread.start();
mProcStartHandler = new Handler(mProcStartHandlerThread.getLooper());
mConstants = new ActivityManagerConstants(mContext, this, mHandler);
final ActiveUids activeUids = new ActiveUids(this, true /* postChangesToAtm */);
mPlatformCompat = (PlatformCompat) ServiceManager.getService(
Context.PLATFORM_COMPAT_SERVICE);
mProcessList.init(this, activeUids, mPlatformCompat);
mLowMemDetector = new LowMemDetector(this);
mOomAdjuster = new OomAdjuster(this, mProcessList, activeUids);
// 第二步
// Broadcast policy parameters
final BroadcastConstants foreConstants = new BroadcastConstants(
Settings.Global.BROADCAST_FG_CONSTANTS);
foreConstants.TIMEOUT = BROADCAST_FG_TIMEOUT;
final BroadcastConstants backConstants = new BroadcastConstants(
Settings.Global.BROADCAST_BG_CONSTANTS);
backConstants.TIMEOUT = BROADCAST_BG_TIMEOUT;
final BroadcastConstants offloadConstants = new BroadcastConstants(
Settings.Global.BROADCAST_OFFLOAD_CONSTANTS);
offloadConstants.TIMEOUT = BROADCAST_BG_TIMEOUT;
// by default, no "slow" policy in this queue
offloadConstants.SLOW_TIME = Integer.MAX_VALUE;
mEnableOffloadQueue = SystemProperties.getBoolean(
"persist.device_config.activity_manager_native_boot.offload_queue_enabled", false);
mFgBroadcastQueue = new BroadcastQueue(this, mHandler,
"foreground", foreConstants, false);
mBgBroadcastQueue = new BroadcastQueue(this, mHandler,
"background", backConstants, true);
mOffloadBroadcastQueue = new BroadcastQueue(this, mHandler,
"offload", offloadConstants, true);
mBroadcastQueues[0] = mFgBroadcastQueue;
mBroadcastQueues[1] = mBgBroadcastQueue;
mBroadcastQueues[2] = mOffloadBroadcastQueue;
// 第三步
mServices = new ActiveServices(this);
mProviderMap = new ProviderMap(this);
mPackageWatchdog = PackageWatchdog.getInstance(mUiContext);
mAppErrors = new AppErrors(mUiContext, this, mPackageWatchdog);
// 第四步
final File systemDir = SystemServiceManager.ensureSystemDir();
// TODO: Move creation of battery stats service outside of activity manager service.
mBatteryStatsService = new BatteryStatsService(systemContext, systemDir,
BackgroundThread.get().getHandler());
mBatteryStatsService.getActiveStatistics().readLocked();
mBatteryStatsService.scheduleWriteToDisk();
mOnBattery = DEBUG_POWER ? true
: mBatteryStatsService.getActiveStatistics().getIsOnBattery();
mBatteryStatsService.getActiveStatistics().setCallback(this);
mOomAdjProfiler.batteryPowerChanged(mOnBattery);
mProcessStats = new ProcessStatsService(this, new File(systemDir, "procstats"));
mAppOpsService = mInjector.getAppOpsService(new File(systemDir, "appops.xml"), mHandler);
mUgmInternal = LocalServices.getService(UriGrantsManagerInternal.class);
// 第五步
mUserController = new UserController(this);
mPendingIntentController = new PendingIntentController(
mHandlerThread.getLooper(), mUserController);
if (SystemProperties.getInt("sys.use_fifo_ui", 0) != 0) {
mUseFifoUiScheduling = true;
}
mTrackingAssociations = "1".equals(SystemProperties.get("debug.track-associations"));
mIntentFirewall = new IntentFirewall(new IntentFirewallInterface(), mHandler);
mActivityTaskManager = atm;
mActivityTaskManager.initialize(mIntentFirewall, mPendingIntentController,
DisplayThread.get().getLooper());
mAtmInternal = LocalServices.getService(ActivityTaskManagerInternal.class);
// 第六步
mProcessCpuThread = new Thread("CpuTracker") {
@Override
public void run() {
synchronized (mProcessCpuTracker) {
mProcessCpuInitLatch.countDown();
mProcessCpuTracker.init();
}
while (true) {
try {
try {
synchronized(this) {
final long now = SystemClock.uptimeMillis();
long nextCpuDelay = (mLastCpuTime.get()+MONITOR_CPU_MAX_TIME)-now;
long nextWriteDelay = (mLastWriteTime+BATTERY_STATS_TIME)-now;
//Slog.i(TAG, "Cpu delay=" + nextCpuDelay
// + ", write delay=" + nextWriteDelay);
if (nextWriteDelay < nextCpuDelay) {
nextCpuDelay = nextWriteDelay;
}
if (nextCpuDelay > 0) {
mProcessCpuMutexFree.set(true);
this.wait(nextCpuDelay);
}
}
} catch (InterruptedException e) {
}
updateCpuStatsNow();
} catch (Exception e) {
Slog.e(TAG, "Unexpected exception collecting process stats", e);
}
}
}
};
mHiddenApiBlacklist = new HiddenApiSettings(mHandler, mContext);
Watchdog.getInstance().addMonitor(this);
Watchdog.getInstance().addThread(mHandler);
// bind background threads to little cores
// this is expected to fail inside of framework tests because apps can't touch cpusets directly
// make sure we've already adjusted system_server's internal view of itself first
updateOomAdjLocked(OomAdjuster.OOM_ADJ_REASON_NONE);
try {
Process.setThreadGroupAndCpuset(BackgroundThread.get().getThreadId(),
Process.THREAD_GROUP_SYSTEM);
Process.setThreadGroupAndCpuset(
mOomAdjuster.mAppCompact.mCompactionThread.getThreadId(),
Process.THREAD_GROUP_SYSTEM);
} catch (Exception e) {
Slog.w(TAG, "Setting background thread cpuset failed");
}
}
我总共将 AMS 的实例化过程总体分为了六个步骤：
- 构造一些 Context、Handler 和 Thread，如 uiHandler 等，用来处理 UI 相关的工作；
- 定义了容纳前台和后台的广播队列，这也说明了 AMS 不仅仅关注 Activity，也负责其他组件状态的管理；
- 管理 Service 和 Provider 的对象数组；
- 初始化system下面需要的一系列文件目录。例如权限文件、进程状态信息文件等等；
- 管理 ActivityStack，也管理 Activity 启动时用到的 Intent 和 flag；
- 启动一个线程专门跟进 cpu 当前状态信息，AMS 对当前 cpu 状态了如指掌，可以更加高效的安排其他工作。
Activity 状态管理
先提出几个问题，我们根据问题去看下面的部分：
Activity 是如何被创建的？
Android 是如何管理 Activity 状态的？

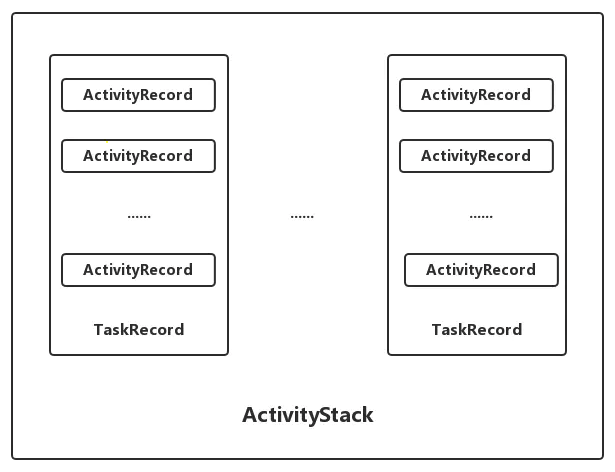

一个 Task 包含一个或者多个 Activity，一个 Stack 包含一个或者多个 Task，这儿引入 ActivityStack，还有ActivityStackSupervisor 负责管理所有的 Stack。那么这些对象都是如何管理的？
Activity 的创建

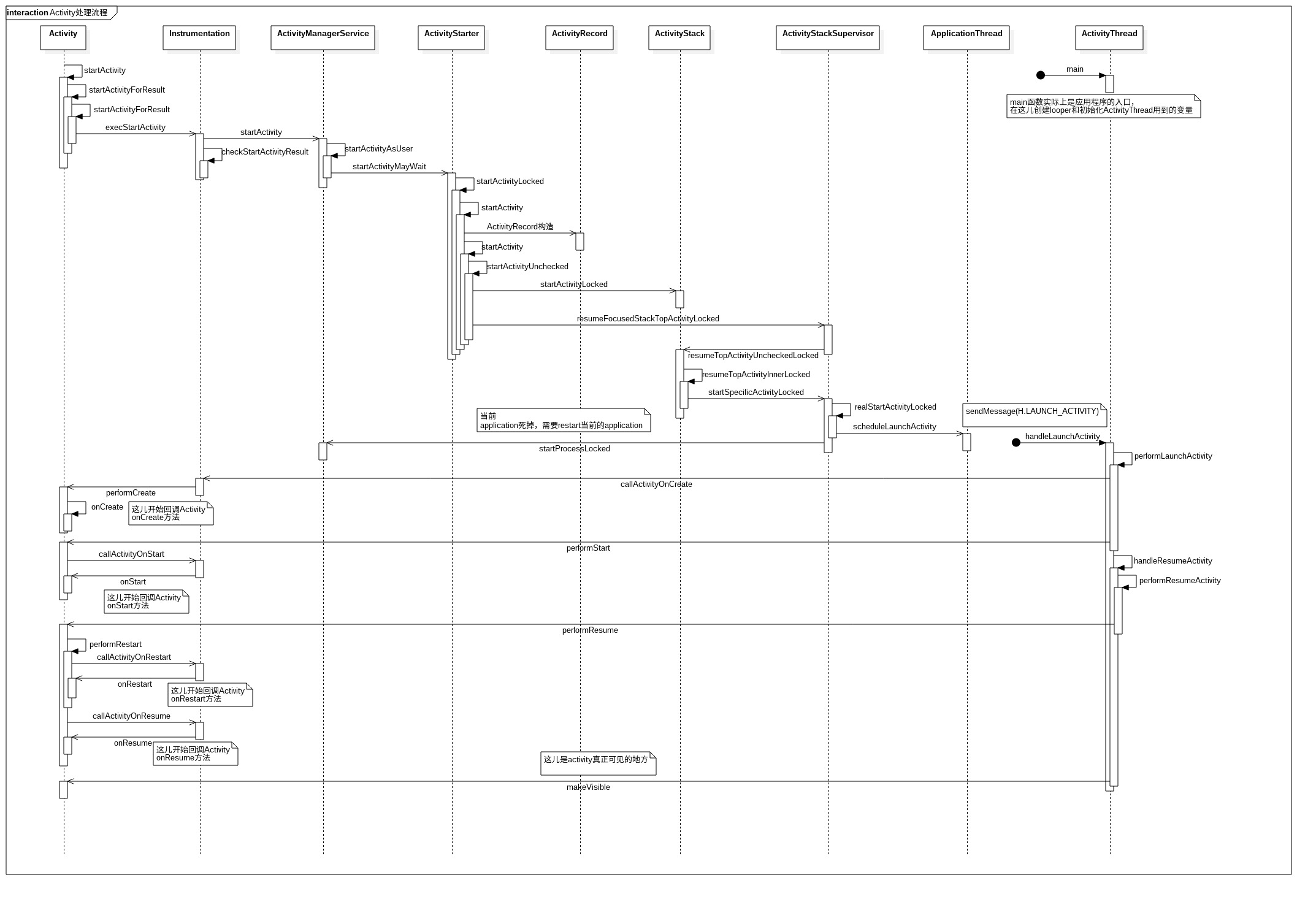

我们在关于 Activity 的一切这篇文章中讲过，Activity 是由 ActivityThread 创建的实例，那么 ActivityThread 是由谁创建的？AMS 又是如何介入的呢？我们来看一下。
在前文中讲过，system_server 在它的main()方法中创建了 SystemServer 的实例，并调用了它的run()方法，在这里有这么一段：
private void run() {
...
// Initialize the system context.
createSystemContext();
...
}
private void createSystemContext() {
ActivityThread activityThread = ActivityThread.systemMain();
mSystemContext = activityThread.getSystemContext();
mSystemContext.setTheme(DEFAULT_SYSTEM_THEME);
final Context systemUiContext = activityThread.getSystemUiContext();
systemUiContext.setTheme(DEFAULT_SYSTEM_THEME);
}
system_server 进程似乎是创建了 ActivityThread 的实例，我们看看ActivityThread.systemMain()方法做了什么：
final ApplicationThread mAppThread = new ApplicationThread();
@UnsupportedAppUsage
public static ActivityThread systemMain() {
...
ActivityThread thread = new ActivityThread();
thread.attach(true, 0);
return thread;
}
private void attach(boolean system, long startSeq) {
...
// 找到了，AMS 在这里介入了
final IActivityManager mgr = ActivityManager.getService();
try {
mgr.attachApplication(mAppThread, startSeq);
} catch (RemoteException ex) {
throw ex.rethrowFromSystemServer();
}
...
}
ApplicationThread 是 IApplicationThread.Stub 的子类，而 IApplicationThread 是 AMS 用来与应用进程通讯的接口。
IActivityManager 是 AMS 的 Binder 接口，应用进程会通过这个接口，用 Binder 机制与 AMS 进行通讯。
所以，attachApplication()方法一经调用，就将应用进程与 AMS 联系了起来，AMS 就可以管理应用进程中的 Activity 状态了。
实际上我们仔细看一下 ActivityThread 的代码，我们会发现，AMS 在很多地方都介入了管理，比如下面几处：
private void handleReceiver(ReceiverData data) {
...
IActivityManager mgr = ActivityManager.getService();
...
data.sendFinished(mgr);
...
}
private void handleCreateService(CreateServiceData data) {
...
service.attach(context, this, data.info.name, data.token, app,
ActivityManager.getService());
...
}
private void handleBindService(BindServiceData data) {
...
if (!data.rebind) {
IBinder binder = s.onBind(data.intent);
ActivityManager.getService().publishService(
data.token, data.intent, binder);
} else {
s.onRebind(data.intent);
ActivityManager.getService().serviceDoneExecuting(
data.token, SERVICE_DONE_EXECUTING_ANON, 0, 0);
}
...
}
可见，AMS 真的如开头所说，是个多面手，管理了许多 Android 组件的状态与数据。
ActivityRecord、TaskRecord、ActivityStack
先来一张图，挑明这三者的关系：
- 一个 ActivityStack 中包含多个 TaskRecord
- 一个 TaskRecord 中包含一个或多个 ActivityRecord，
- 一个 ActivityRecord 就对应着一个 Activity，保存了它的所有信息；同时一个 Activity 可能会生成多个 ActivityRecord，因为由于其启动模式决定了，它有可能被多次启动，会存在多个实例
那么我们从下往上分析，先来看看 ActivityRecord。
ActivityRecord
An entry in the history stack, representing an activity.
如代码注释中所言，ActivityRecord 是 Activity 历史栈中的一个条目，代表了一个 Activity。我们看看它比较重要的部分代码：
// package com.android.server.wm.ActivityRecord.java
final class ActivityRecord extends ConfigurationContainer {
final ActivityTaskManagerService mAtmService; // owner
final IApplicationToken.Stub appToken; // window manager token
final ActivityInfo info; // all about me
ApplicationInfo appInfo; // information about activity's app
final Intent intent; // the original intent that generated us
final ComponentName mActivityComponent; // the intent component, or target of an alias.
final String taskAffinity; // as per ActivityInfo.taskAffinity
private TaskRecord task; // the task this is in.
ActivityRecord resultTo; // who started this entry, so will get our reply
final int requestCode; // code given by requester (resultTo)
int launchMode; // the launch mode activity attribute.
final ActivityStackSupervisor mStackSupervisor;
}
Android 如何管理 Activity 状态
先来一张图，我们看看 Activity 的各种生命周期方法是在何时被调用：
这儿写明了回调各个流程的时机，其中包含这对 Activity 状态的处理，这一点非常重要，Android 系统处理的 Activity 很多，我们准确指示当前 Activity 的状态，可以保证 Activity 调用的正确性。
我们来仔细分析一个事件：Activity 的onPause()事件是如何从触摸屏幕开始触发的。因为触发onPause()的途径有很多种，我们选择一种 —— 按下了 HOME 键。这是一个非常复杂的过程，我们得一步步来。
我们在View事件传递机制中提到过，触摸作为一个 InputEvent，由 InputManagerService 来进行处理。
InputManagerService 此时会收到来自 Native 层的调用：
void NativeInputManager::onPointerDownOutsideFocus(const sp<IBinder>& touchedToken) {
ATRACE_CALL();
JNIEnv* env = jniEnv();
ScopedLocalFrame localFrame(env);
jobject touchedTokenObj = javaObjectForIBinder(env, touchedToken);
env->CallVoidMethod(mServiceObj, gServiceClassInfo.onPointerDownOutsideFocus, touchedTokenObj);
checkAndClearExceptionFromCallback(env, "onPointerDownOutsideFocus");
}
调用了它的onPointerDownOutsideFocus()方法：
// Native callback.
private void onPointerDownOutsideFocus(IBinder touchedToken) {
/**
* Notifies window manager that a {@link android.view.MotionEvent#ACTION_DOWN} pointer event
* occurred on a window that did not have focus.
*
* @param touchedToken The token for the window that received the input event.
*/
mWindowManagerCallbacks.onPointerDownOutsideFocus(touchedToken);
}
此处的mWindowManagerCallback是 system_server 在startOtherServices()方法中赋值的，代码如下：
// com.android.server.SystemServer.java
private void startOtherServices() {
...
inputManager = new InputManagerService(context);
...
wm = WindowManagerService.main(context, inputManager, !mFirstBoot, mOnlyCore,
new PhoneWindowManager(), mActivityManagerService.mActivityTaskManager);
...
inputManager.setWindowManagerCallbacks(wm.getInputManagerCallback());
}
所以此处的onPointerDownOutsideFocus()方法将由 InputManagerCallback 来实现：
// com.android.server.wm.InputManagerCallback.java
@Override
public void onPointerDownOutsideFocus(IBinder touchedToken) {
// mService 也即 WindowManagerService 的实例，它的 mH 是一个自定义的 Handler 实例
mService.mH.obtainMessage(ON_POINTER_DOWN_OUTSIDE_FOCUS, touchedToken).sendToTarget();
}
// com.android.server.wm.WindowManagerService.java
class H extends Handler {
@Override
public void handleMessage(Message msg) {
switch(msg.what) {
...
case ON_POINTER_DOWN_OUTSIDE_FOCUS: {
synchronized (mGlobalLock) {
final IBinder touchedToken = (IBinder) msg.obj;
onPointerDownOutsideFocusLocked(touchedToken);
}
break;
}
...
}
}
}
private void onPointerDownOutsideFocusLocked(IBinder touchedToken) {
...
handleDisplayFocusChange(touchedWindow);
}
private void handleDisplayFocusChange(WindowState window) {
final DisplayContent displayContent = window.getDisplayContent();
...
// For compatibility, only the topmost activity is allowed to be resumed for pre-Q
// app. Ensure the topmost activities are resumed whenever a display is moved to top.
// TODO(b/123761773): Investigate whether we can move this into
// RootActivityContainer#updateTopResumedActivityIfNeeded(). Currently, it is risky
// to do so because it seems possible to resume activities as part of a larger
// transaction and it's too early to resume based on current order when performing
// updateTopResumedActivityIfNeeded().
displayContent.mAcitvityDisplay.ensureActivitiesVisible(null /* starting */,
0 /* configChanges */, !PRESERVE_WINDOWS, true /* notifyClients */);
}
DisplayContent.mAcitvityDisplay 是一个 ActivityDisplay 类型的变量。一个 ActivityDisplay 表示一块屏幕，一般情况下，ActivityDisplay 在 Android 系统中，都只有一个实例。下面是 ActivityDisplay 的简介，可以回头再看。
::: tip
关于 ActivityDisplay
ActivityDisplay 维护了一个 ActivityStack 的栈，并且有添加和移除的方法
/**
* Exactly one of these classes per Display in the system. Capable of holding zero or more
* attached {@link ActivityStack}s.
*/
class ActivityDisplay {
...
/**
* All of the stacks on this display. Order matters, topmost stack is in front of all other
* stacks, bottommost behind. Accessed directly by ActivityManager package classes. Any calls
* changing the list should also call {@link #onStackOrderChanged()}.
*/
final ArrayList<ActivityStack> mStacks = new ArrayList<ActivityStack>();
...
void addChild(ActivityStack stack, int position) {
if (position == POSITION_BOTTOM) {
position = 0;
} else if (position == POSITION_TOP) {
position = mStacks.size();
}
addStackReferenceIfNeeded(stack);
positionChildAt(stack, position);
}
void removeChild(ActivityStack stack) {
mStacks.remove(stack);
...
onStackOrderChanged(stack);
}
private void positionChildAt(ActivityStack stack, int position, boolean includingParents,
String updateLastFocusedStackReason) {
...
final int insertPosition = getTopInsertPosition(stack, position);
mStacks.add(insertPosition, stack);
...
onStackOrderChanged(stack);
}
}
:::
我们来看ActivityDisplay.ensureActivitiesVisible()方法的代码：
void ensureActivitiesVisible(ActivityRecord starting, int configChanges,
boolean preserveWindows, boolean notifyClients) {
for (int stackNdx = getChildCount() - 1; stackNdx >= 0; --stackNdx) {
final ActivityStack stack = getChildAt(stackNdx);
stack.ensureActivitiesVisibleLocked(starting, configChanges, preserveWindows,
notifyClients);
}
}
循环调用了栈内的 ActivityStack 的ensureActivitiesVisibleLocked()方法：
// com.android.server.vm.ActivityStack.java
/**
* Ensure visibility with an option to also update the configuration of visible activities.
* @see #ensureActivitiesVisibleLocked(ActivityRecord, int, boolean)
* @see RootActivityContainer#ensureActivitiesVisible(ActivityRecord, int, boolean)
*/
// TODO: Should be re-worked based on the fact that each task as a stack in most cases.
// 由这个 TODO 可以看出，日后 Android 必定会变成一个 task 中只有一个 stack，毕竟大多数情况下是这样的
final void ensureActivitiesVisibleLocked(ActivityRecord starting, int configChanges,
boolean preserveWindows, boolean notifyClients) {
...
for (int taskNdx = mTaskHistory.size() - 1; taskNdx >= 0; --taskNdx) {
...
final TaskRecord task = mTaskHistory.get(taskNdx);
final ArrayList<ActivityRecord> activities = task.mActivities;
for (int activityNdx = activities.size() - 1; activityNdx >= 0; --activityNdx) {
final ActivityRecord r = activities.get(activityNdx);
...
r.makeClientVisible();
...
}
}
来到了ActivityRecord.makeClientVisible()：
// com.android.server.wm.ActivityRecord.java
/** Send visibility change message to the client and pause if needed. */
void makeClientVisible() {
...
makeActiveIfNeeded(null /* activeActivity*/);
...
}
/**
* Make activity resumed or paused if needed.
* @param activeActivity an activity that is resumed or just completed pause action.
* We won't change the state of this activity.
*/
boolean makeActiveIfNeeded(ActivityRecord activeActivity) {
if (shouldResumeActivity(activeActivity)) {
return getActivityStack().resumeTopActivityUncheckedLocked(activeActivity /* prev */,
null /* options */);
} else if (shouldPauseActivity(activeActivity)) {
...
}
return false;
}
又调用了 ActivityStack 的resumeTopActivityUncheckedLocked()方法：
// com.android.server.wm.ActivityStack.java
/**
* Ensure that the top activity in the stack is resumed.
*
* @param prev The previously resumed activity, for when in the process
* of pausing; can be null to call from elsewhere.
* @param options Activity options.
*
* @return Returns true if something is being resumed, or false if
* nothing happened.
*
* NOTE: It is not safe to call this method directly as it can cause an activity in a
* non-focused stack to be resumed.
* Use {@link RootActivityContainer#resumeFocusedStacksTopActivities} to resume the
* right activity for the current system state.
*/
@GuardedBy("mService")
boolean resumeTopActivityUncheckedLocked(ActivityRecord prev, ActivityOptions options) {
...
result = resumeTopActivityInnerLocked(prev, options);
...
return result;
}
@GuardedBy("mService")
private boolean resumeTopActivityInnerLocked(ActivityRecord prev, ActivityOptions options) {
...
pausing |= startPausingLocked(userLeaving, false, next, false);
...
}
// com.android.server.wm.ActivityStack.java
ActivityTaskManagerService mService;
final boolean startPausingLocked(boolean userLeaving, boolean uiSleeping,
ActivityRecord resuming, boolean pauseImmediately) {
...
ActivityRecord prev = mResumedActivity;
...
if (prev.attachedToProcess()) {
...
try {
...
//prev 就是当前获得焦点的 ActivityRecord，现在的目的是令该 ActivityRecord 对应的 Activity 调用 onPause() 方法
...
mService.getLifecycleManager().scheduleTransaction(prev.app.getThread(),
prev.appToken, PauseActivityItem.obtain(prev.finishing, userLeaving,
prev.configChangeFlags, pauseImmediately));
} catch (Exception e) {
...
mPausingActivity = null;
mLastPausedActivity = null;
mLastNoHistoryActivity = null;
}
} else {
mPausingActivity = null;
mLastPausedActivity = null;
mLastNoHistoryActivity = null;
}
...
}
mService也即 ActivityTaskManagerService，它的getLifecycleManager()获取了一个 ClientLifecycleManager 的内部实例，然后调用它的schedultTransaction()方法。PauseActivityItem 是 ActivityLifecycleItem 的派生类：
// com.android.server.wm.ActivityStack.java
void scheduleTransaction(@NonNull IApplicationThread client, @NonNull IBinder activityToken,
@NonNull ActivityLifecycleItem stateRequest) throws RemoteException {
final ClientTransaction clientTransaction = transactionWithState(client, activityToken,
stateRequest);
scheduleTransaction(clientTransaction);
}
void scheduleTransaction(ClientTransaction transaction) throws RemoteException {
final IApplicationThread client = transaction.getClient();
transaction.schedule();
if (!(client instanceof Binder)) {
// If client is not an instance of Binder - it's a remote call and at this point it is
// safe to recycle the object. All objects used for local calls will be recycled after
// the transaction is executed on client in ActivityThread.
transaction.recycle();
}
}
ClientTransaction 类是一个 Parcelable，看命名方式，就知道这又涉及到 Binder 通讯了：
// android.app.servertransaction.ClientTransaction
public class ClientTransaction implements Parcelable, ObjectPoolItem {
...
private IApplicationThread mClient;
...
// 这里的处理分为3步：
// 1. client 端调用 preExecute(ClientTransactionHandler)，将会触发一系列的准备工作，包括设置回调，生命周期管理等等
// 2. 准备传递的消息
// 3. client 端调用 TransactionExecutor.execute(ClientTransaction)，将会执行所有的回调和生命周期方法
public void schedule() throws RemoteException {
mClient.scheduleTransaction(this);
}
}
也即将 pauseActivity 的工作交给了交给了应用进程的 ActivityThread：
@Override
public void scheduleTransaction(ClientTransaction transaction) throws RemoteException {
ActivityThread.this.scheduleTransaction(transaction);
}
但是 ActivityThread 并没有直接处理这个 transaction，而是又调用了scheduleTransaction()这个方法，这个方法来自于它的抽象父类ClientTransactionHandler：
/**
* Defines operations that a {@link android.app.servertransaction.ClientTransaction} or its items
* can perform on client.
* @hide
*/
public abstract class ClientTransactionHandler {
// Schedule phase related logic and handlers.
/** Prepare and schedule transaction for execution. */
void scheduleTransaction(ClientTransaction transaction) {
transaction.preExecute(this);
// H extends Handler， 它定义了 ActivityThread 所需要处理的所有事件的 code
// EXECUTE_TRANSACTION 就是其中之一，代表要转换 Activity 的状态了
// 而 sendMessage 方法由 ActivityThread 方法实现，最终将消息发送到 ActivityThread 的成员变量 mH 中（H类的实例）
sendMessage(ActivityThread.H.EXECUTE_TRANSACTION, transaction);
}
}
我们来看看这个 H 做了什么：
switch(msg.what) {
...
case EXECUTE_TRANSACTION:
final ClientTransaction transaction = (ClientTransaction) msg.obj;
mTransactionExecutor.execute(transaction);
if (isSystem()) {
// Client transactions inside system process are recycled on the client side
// instead of ClientLifecycleManager to avoid being cleared before this
// message is handled.
transaction.recycle();
}
// TODO(lifecycler): Recycle locally scheduled transactions.
break;
...
}
啊。。绕得还真远，又出现了一个 TransactionExecutor 类。这个类的作用是保证一个 transaction 转换过程能够按照正确的顺序执行。
经过一系列调用，最终会运行到它的这一句：
performLifecycleSequence(r, path, transaction);
这个方法的定义如下：
private void performLifecycleSequence(ActivityClientRecord r, IntArray path,
ClientTransaction transaction) {
final int size = path.size();
for (int i = 0, state; i < size; i++) {
state = path.get(i);
switch (state) {
...
case ON_PAUSE:
mTransactionHandler.handlePauseActivity(r.token, false /* finished */,
false /* userLeaving */, 0 /* configChanges */, mPendingActions,
"LIFECYCLER_PAUSE_ACTIVITY");
break;
...
}
绕啊绕啊绕，最终还是绕回了ActivityThread.handlePauseActivity()方法：
@Override
public void handlePauseActivity(IBinder token, boolean finished, boolean userLeaving,
int configChanges, PendingTransactionActions pendingActions, String reason) {
ActivityClientRecord r = mActivities.get(token);
if (r != null) {
if (userLeaving) {
performUserLeavingActivity(r);
}
r.activity.mConfigChangeFlags |= configChanges;
performPauseActivity(r, finished, reason, pendingActions);
// Make sure any pending writes are now committed.
if (r.isPreHoneycomb()) {
QueuedWork.waitToFinish();
}
mSomeActivitiesChanged = true;
}
}
final Bundle performPauseActivity(ActivityClientRecord r, boolean finished, String reason,
PendingTransactionActions pendingActions) {
...
// 之前启动Activity时会调用 performLaunchActivity()，并在最后以 token 为 Key，ActivityClientRecord 为 value 保存 ActivityClientRecord。
// 然后到了 performPauseActivity() 中又会根据 token 取出对应 ActivityClientRecord。
// 再调用 ActivityClientRecord 中保存的 activity 的 onPause() 方法
performPauseActivityIfNeeded(r, reason);
...
}
private void performPauseActivityIfNeeded(ActivityClientRecord r, String reason) {
...
mInstrumentation.callActivityOnPause(r.activity);
...
}
public class Instrumentation {
public void callActivityOnPause(Activity activity) {
activity.performPause();
}
}
至此，才完成了 Activity 的 pause 过程。
